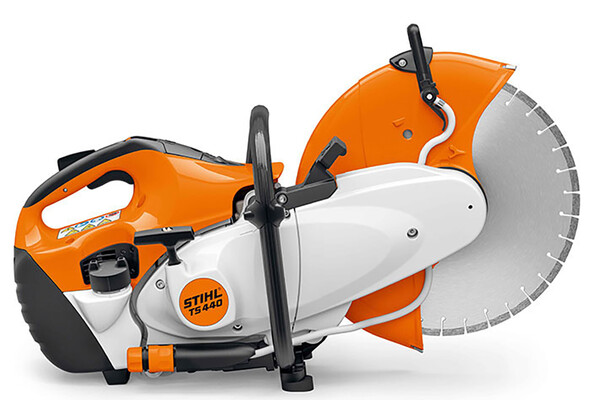

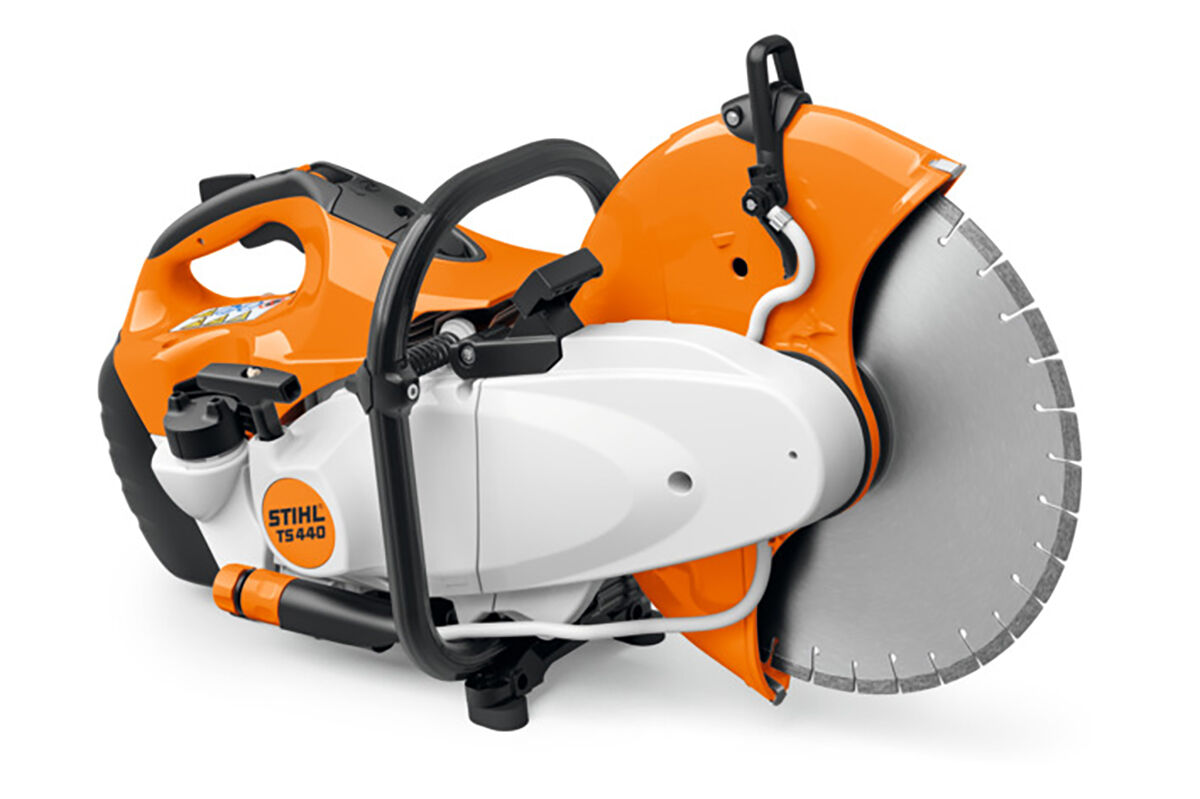

Innovative cut-off machine for 350 mm cutting wheels. With extended guard adjustment and STIHL QuickStop wheel brake. The extended guard adjustment makes cut guidance significantly easier when cutting pipes, in corners and wall sections where space is limited. Fitted with electronic water control, a long-life air filter system for a long filter service life, and anti-vibration system as standard. Effortless start-up thanks to STIHL ElastoStart and a fuel-efficient 2-MIX engine. Machine supplied with abrasive wheel as standard. *Diamond wheel sold separately
Features
| STIHL 2-MIX Engine | The new 2-MIX engine features an advanced stratified charge system that boosts power, whilst reducing consumption and pollution, significantly lowering unburned hydrocarbons in the exhaust. The result is a cleaner, more fuel efficient engine |
|---|
| Long-life air filter system (cyclone air routing) | The long-life air filter system with cyclone air routing ensures that 80% of dust particles are separated and transported out into the surrounding air. |
|---|
| STIHL anti-vibration system | Buffer and spring elements reduce the transmission of engine vibrations to the operator's arms and hands. This makes free-hand cutting much less strenuous |
|---|
| STIHL ElastoStart | This standard or retrofitted starter grip allows smooth starting without abrupt power Peaks, making starting the machine considerably easier. |
|---|
| Decompression valve | The decompression valve is part of the easy start-system. The valve should be pressed before starting in order to reduce the compression pressure when starting, as well as the effort needed to pull the starter rope. The decompression valve is semi-automatic, meaning that it must be pressed manually before starting, but then closes automatically. |
|---|
Specifications
| Weight kg | 11.1 |
|---|
| CC's | 66.7 |
|---|
| kW's | 3.2 |
|---|
| Cut-Off Wheel mm | 350 |
|---|
| Max cutting depth mm | 125 |
|---|
Accessories
| FW 20 cart with attachment kit & watertank | The STIHL FW 20 cart turns all hand-operated STIHL cut-off saws into easily manoeuvrable cutting machines. Convenient depth adjustment allowing the cut-off saw to be easily mounted on the cart and cut height adjusted by means of the upper handle. Suitable for all hand-held STIHL cut-off machines. An attachment kit with a quick-mounting system and water tank is included. |
|---|
| Multispray | Multi function spray that cleans a number of tools and leaves a protective film that does not harden on the surface and thereby protects against corrosion. Rotating parts are lubricated. An essential all-rounder for every workshop. 400ml spray can. |
|---|
| Quick-mounting system conversion kit | Conversion kit with quick release system for the FW 20. For TS 400, TS 420, TS 500i, TS 700 and TS 800. |
|---|
| Cutting direction indicator | Accessory for FW 20 cart. |
|---|
| Wheel kit | Attachment kit for the front foot. The cut-off machine is supported on flat surfaces. Smooth-running wheels facilitate moving the tool. For TS 420, TS 500i, TS 700 and TS 800. |
|---|
| Pressurised water container | Pressurised water container for use with all cut-off saws. The 10 litre capacity pressurised water container for mobile water supply ensures a clean wet cut without creating dust, even on construction sites with no water connection. |
|---|
